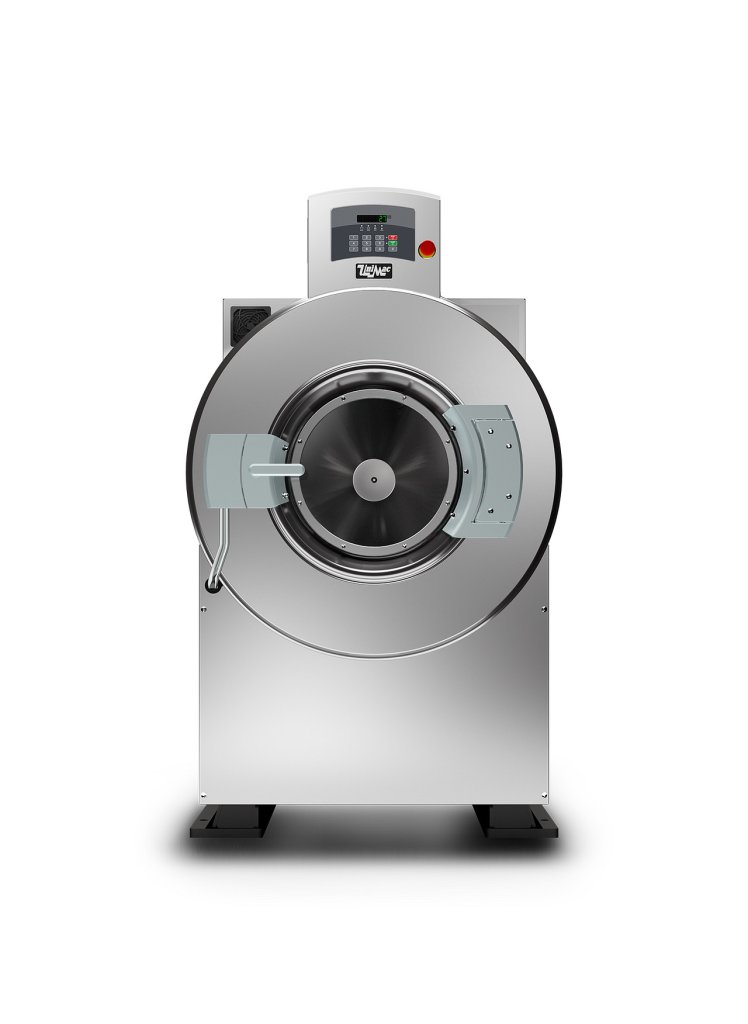

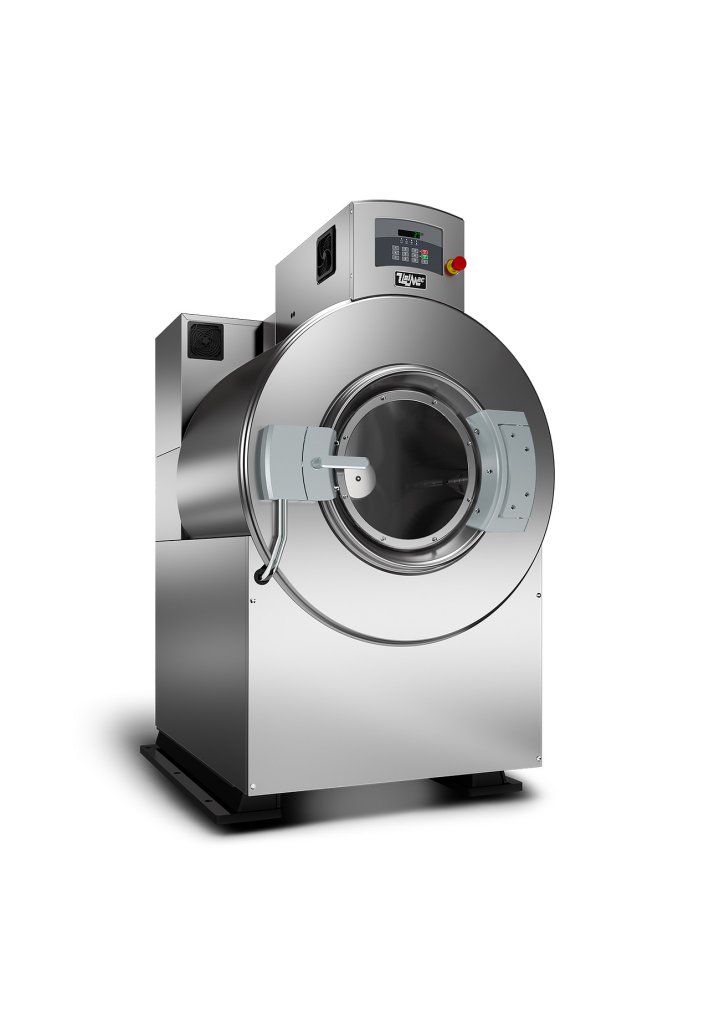

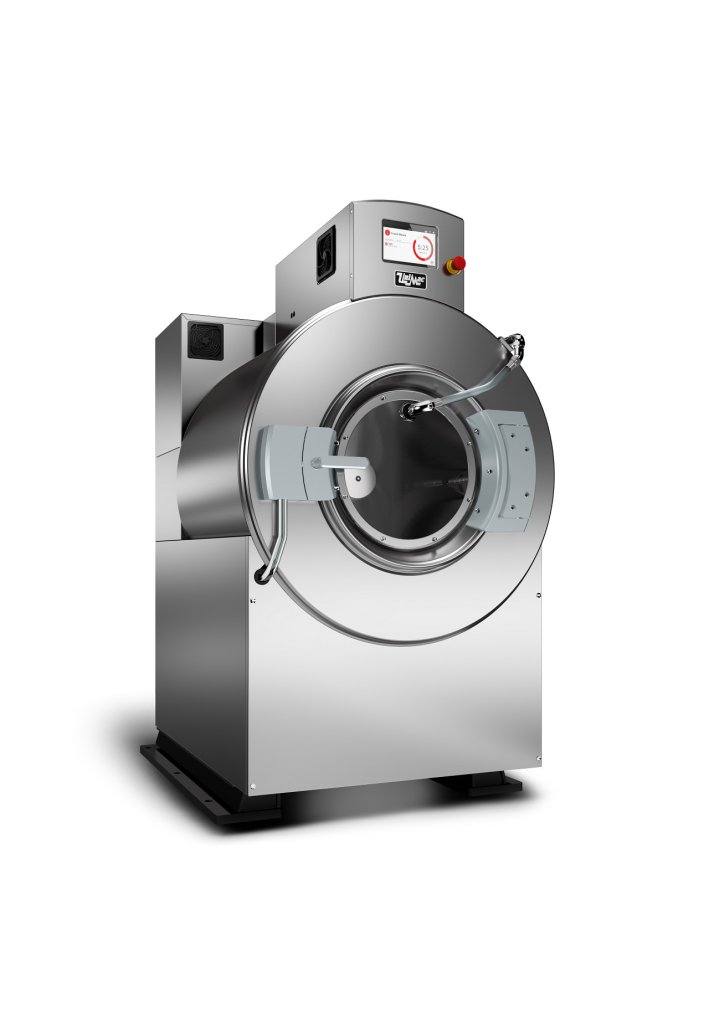

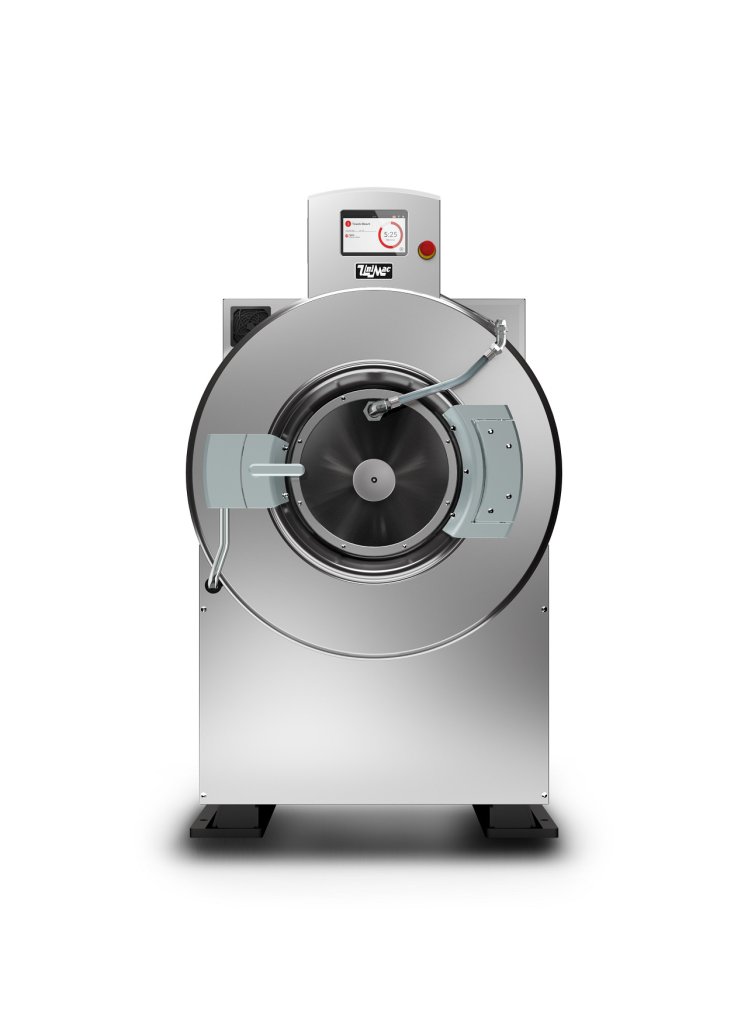

UW Series High-Performance Hardmount Washer-Extractor
For high-capacity on-premises laundries whose operation demands the best of the best, there’s no other choice than UniMac® high-performance washer-extractors. Durable construction, industry-leading efficiency and exclusive innovations like UniLinc Touch and OPTispray™ combine to deliver lower costs and higher throughput than any other laundry machine on the planet. Whether you operate a hotel, long-term care facility or any other on-premises laundry, UniMac has a washer extractor for you. With a full line of versatile, industrial-strength commercial laundry machines, we have a solution to suit any on-premises laundry needs.
Model number: UWT085V4
Control: UniLinc Touch
Resources:
Available Options
Specifications
- Control Options: UniLinc Touch™
- Capacity – lb (kg): 85 (38.5)
- Cylinder Diameter – in (mm): 36 (914)
- Cylinder Depth – in (mm): 22 (559)
- Cylinder Volume – cu. ft. (liters): 13 (368)
- Height – in (mm): 67.6 (1717)
- Width – in (mm): 40.1 (1019)
- Depth – in (mm): 51.2 (1300)
- Door Opening Size – in (mm): 21 (533)
- Door Bottom To Floor – in (mm): 28.8 (732)
- Motor Size – HP (kW): 7.5 (5.6)
- Drain Diameter – in (mm)*: 2 @ 3 (76)
- Steam Connection – in (mm)*: 1/2 (13)
- Water Inlet Connection – in (mm)*: 4 @ 3/4 (19)
- Shipping Dimensions Approx.*:
- Width – in (mm)*- 43.2 (1097)
- Depth – in (mm)* – 61.8 (1570)
- Height – in (mm)* – 69.4 (1763)
- Net Weight – lb (kg)*: 1670 (757)
- Domestic Shipping Weight – lb (kg)*: 1720 (780)
- Export Shipping Weight – lb (kg)*: 1870 (848)
- Agency Approvals*: cULus
| Total # of Speeds | 9 |
|---|---|
| Cylinder Speed – RPM (G-Force)* | V Speed |
| Gentle*: | 28 (.4) |
| Wash*: | 39 (.78) |
| Distribution*: | 70 (2.5) |
| Very Low*: | 230 (27) |
| Low*: | 443 (100) |
| Medium*: | 542 (200) |
| High*: | 626 (250) |
| Very High*: | 700 (300) |
| Ultra High*: | 766 (400) |
| *All RPM and G-Force results are reliant upon wash load composition and incoming voltage | |
Control Options

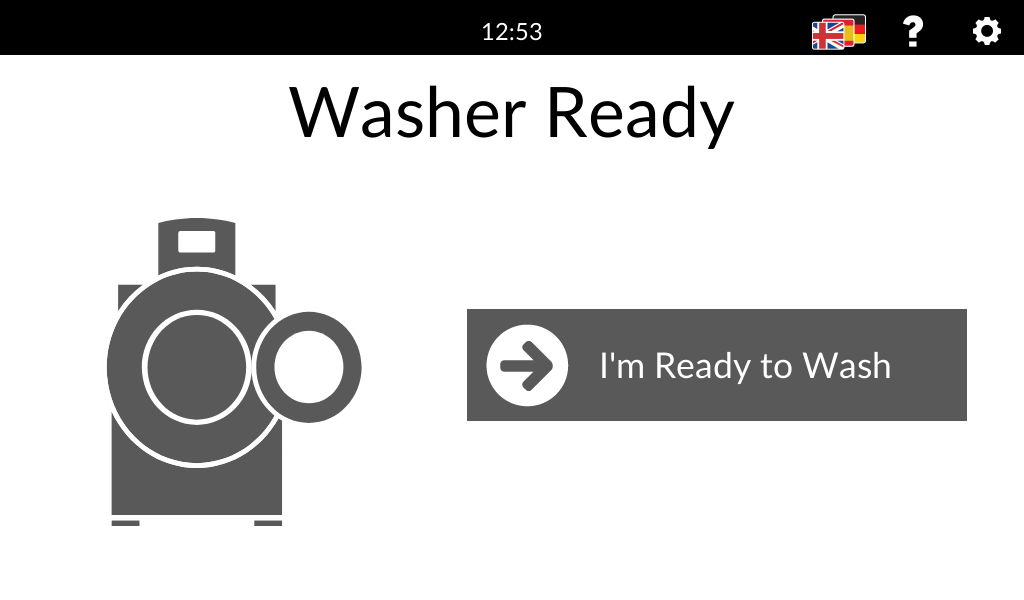

UniLinc Touch
The biggest threat to quality is staff selecting the incorrect wash cycle. UniLinc Touch virtually eliminates that threat with the most intuitive control on the market.
- 34 languages ensure all staff cannot just operate, but operate it correctly
- Real words – no codes – no ambiguity
- Easy-to-use, intuitive controls streamline employee training and serve as a virtual laundry manager to ensure maximum labor efficiency (a giant bonus with staff turnover generally being high).
- Continuity – same control on washer-extractors and tumble dryers
- Ultimate flexibility means your operation is positioned for success well into the future.
- Delayed Start – Get a 30-minute head start on the workday with our programmable advanced start feature.
