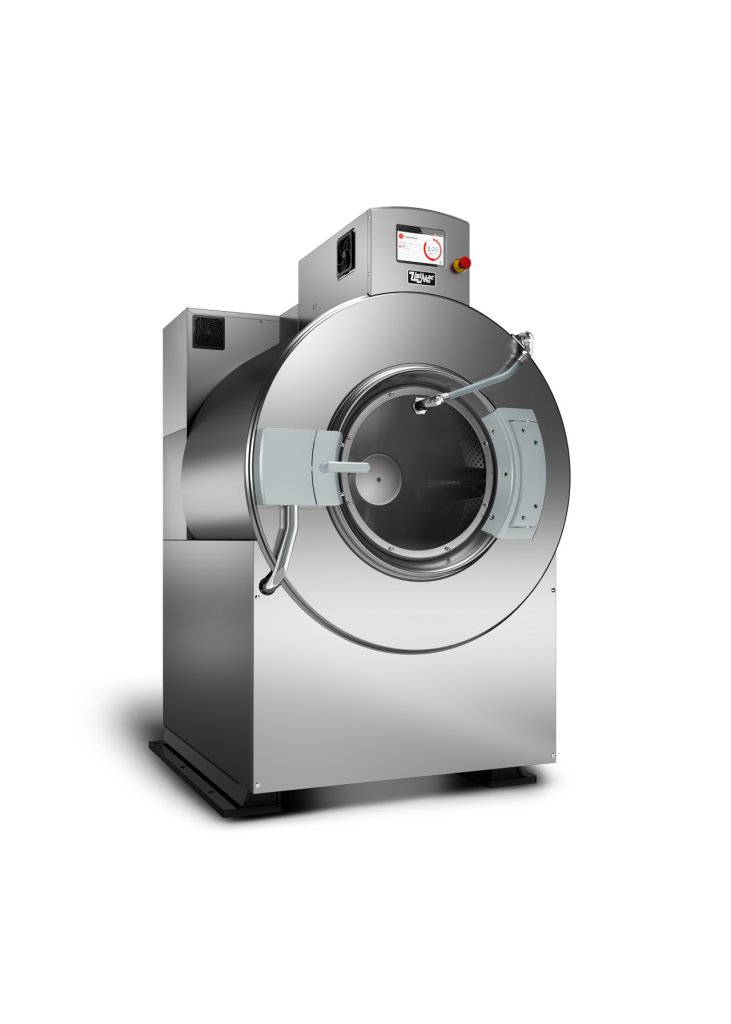

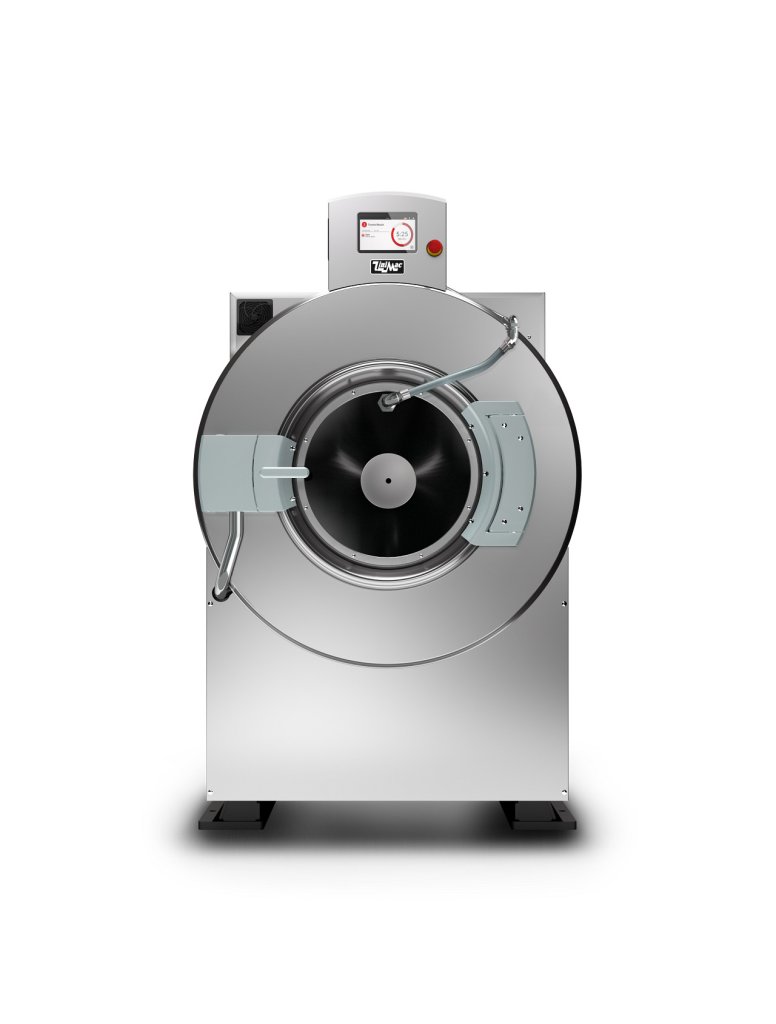

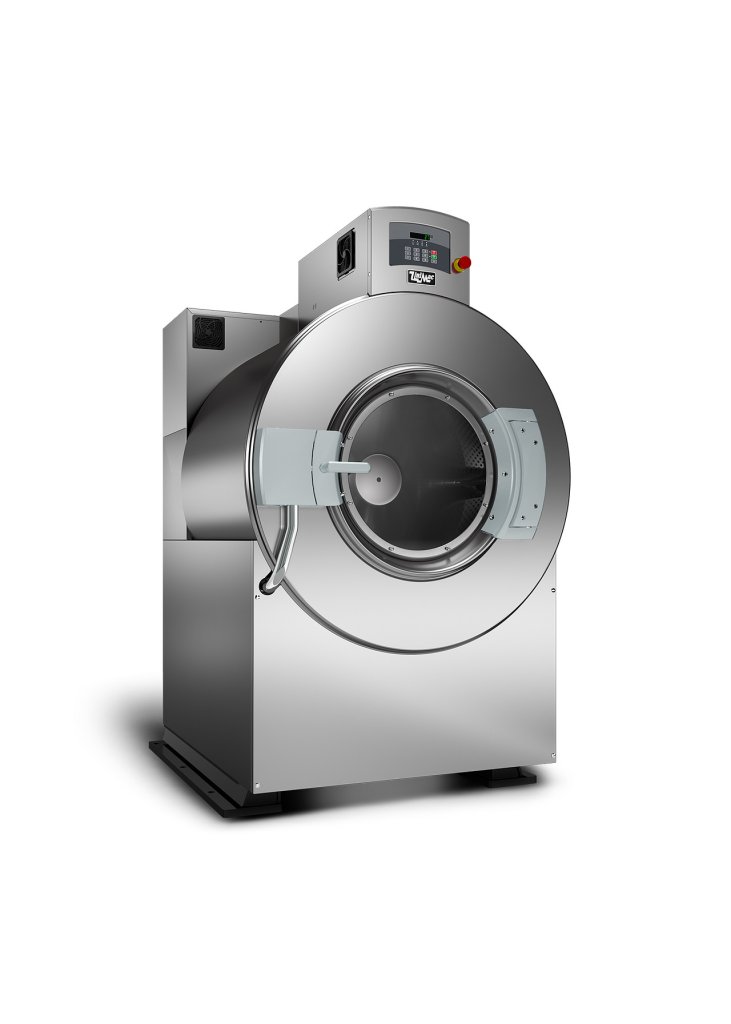

UW Series High-Performance Hardmount Washer-Extractor
For high-capacity on-premises laundries whose operation demands the best of the best, there’s no other choice than UniMac® high-performance washer-extractors. Durable construction, industry-leading efficiency and exclusive innovations like UniLinc Touch and OPTispray™ combine to deliver lower costs and higher throughput than any other laundry machine on the planet. Whether you operate a hotel, long-term care facility or any other on-premises laundry, UniMac has a washer extractor for you. With a full line of versatile, industrial-strength commercial laundry machines, we have a solution to suit any on-premises laundry needs.
Model number: UWT130V4
Control: UniLinc Touch
Resources:
Available Options
Specifications
- Control Options: UniLinc Touch™
- Capacity – lb (kg): 130 (60)
- Cylinder Diameter – in (mm): 42 (1067)
- Cylinder Depth – in (mm): 24 1/2 (622)
- Cylinder Volume – cu. ft. (liters): 19.6 (555)
- Height – in (mm): 72.6 (1844)
- Width – in (mm): 46.1 (1171)
- Depth – in (mm): 54.5 (1384)
- Door Opening Size – in (mm): 24 13/16 (630)
- Door Bottom To Floor – in (mm): 30.5″ (775)
- Motor Size – HP (kW): 10 (7.5)
- Drain Diameter – in (mm)*: 2 @ 3 (76)
- Steam Connection – in (mm)*: 3/4 (19)
- Water Inlet Connection – in (mm)*: 2 @ 1 (25) + 2 @ 3/4 (19)
- Shipping Dimensions Approx.*:
- Width – in (mm)*- 49.2 (1250)
- Depth – in (mm)* – 64.8 (1646)
- Height – in (mm)* – 76.4 (1941)
- Net Weight – lb (kg)*: 2040 (925)
- Domestic Shipping Weight – lb (kg)*: 2100 (953)
- Export Shipping Weight – lb (kg)*: 2260 (1025)
- Agency Approvals*: cULus
| Total # of Speeds | 9 |
|---|---|
| Cylinder Speed – RPM (G-Force)* | V Speed |
| Gentle*: | 26 (.40) |
| Wash*: | 36 (.77) |
| Distribution*: | 65 (2.5) |
| Very Low*: | 213 (27) |
| Low*: | 410 (100) |
| Medium*: | 502 (150) |
| High*: | 579 (200) |
| Very High*: | 648 (250) |
| Ultra High*: | 710 (300) |
| *All RPM and G-Force results are reliant upon wash load composition and incoming voltage | |
Control Options
UniLinc Touch
The biggest threat to quality is staff selecting the incorrect wash cycle. UniLinc Touch virtually eliminates that threat with the most intuitive control on the market.
- 34 languages ensure all staff cannot just operate, but operate it correctly
- Real words – no codes – no ambiguity
- Easy-to-use, intuitive controls streamline employee training and serve as a virtual laundry manager to ensure maximum labor efficiency (a giant bonus with staff turnover generally being high).
- Continuity – same control on washer-extractors and tumble dryers
- Ultimate flexibility means your operation is positioned for success well into the future.
- Delayed Start – Get a 30-minute head start on the workday with our programmable advanced start feature.
