30 lb capacity -UST30

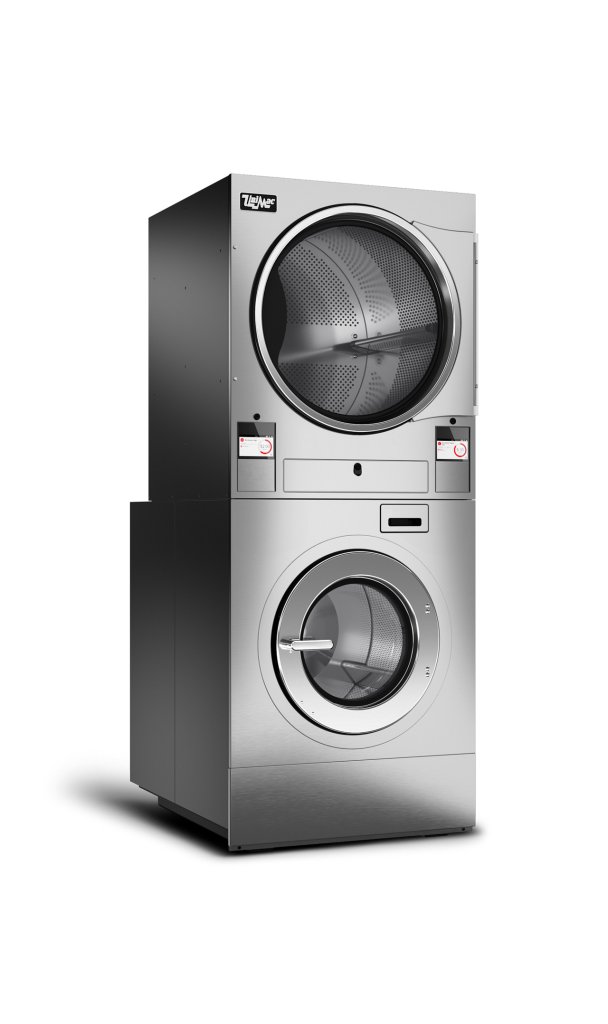

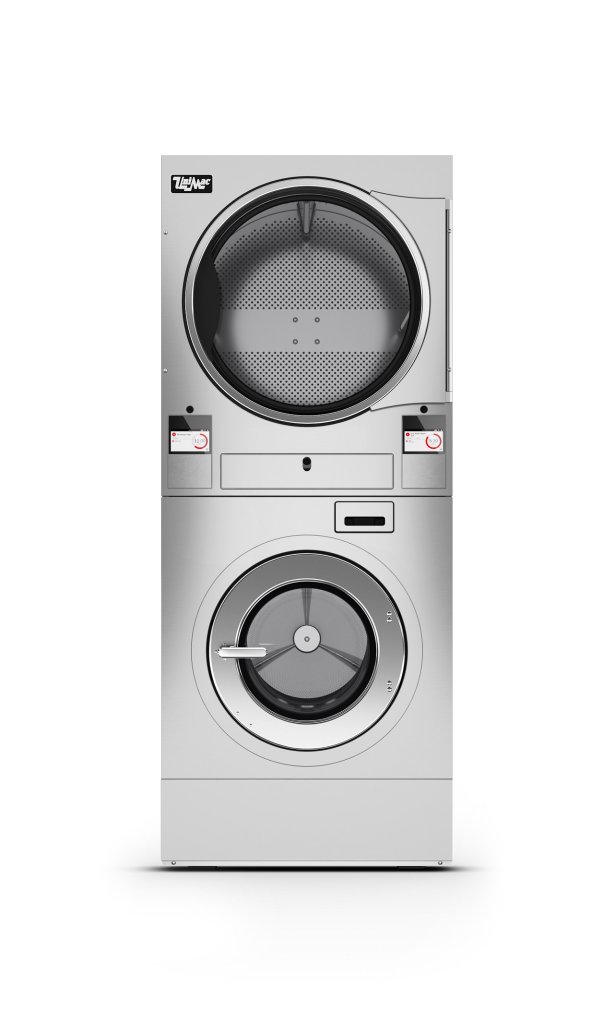

Stacked Washer-Extractor & Tumble Dryers

For on-premises laundries where space is an issue, UniMac® stacked washer-extractor/tumble dryers deliver exceptional capacity in a small footprint. The innovative unit brings all the benefits of UniMac’s world-class washer-extractor and tumble dryer products to laundries that might struggle to fit two commercial machines. Durable construction and industry-leading efficiency combine to deliver lower costs and higher throughput for a variety of markets such as small hospitality properties, spas, salons, fitness clubs, veterinary clinics and many others.

The washer and dryer units can be separated and reassembled if necessary.

Model number: UST30

Control: OPL Touch

Available Options

Sorry, we couldn't find any posts. Please try a different search.

Specifications

  • Machine:                  Washer-Extractor        Tumble Dryer
  • Control Options:       OPL Touch
  • Capacity – lb (kg):   30 (13) x 2
  • Width – in (mm):       31.4 (797)
  • Depth – in (mm):      45.5 (1152)
  • Height – in (mm):      79.7 (2023)
  • Cylinder Diameter
    • – in (mm):  24.0 (610)                       30.0 (762)
  • Cylinder Depth
    • – in (mm):  16.0 (406)                        26.0 (660)
  • Cylinder Volume
    • – cu. ft. (liters): 4.2 (119)                        10.6 (300)
  • Reversing Cylinder:       –                               Standard
  • Door Opening Size – in (mm):     14.3 (363)     22.6 (574)
  • Door Bottom To Floor – in (mm): 14.0 (356)     51.3 (1303)
  • Water Inlet Connection – in (mm): 2 x 0.75 (19)     –
  • Drain Diameter – in (mm):  1 x 3 (76)                      –
  • Drain Height to Floor – in (mm): 4.3 (108)                –
  • Heat Input Power:             –               73,000 (21.4, 77.0)
  • Gas Inlet Connection – in (mm): –     1/2 NPT
  • Air Outlet – in (mm):           –               8.0 (200) Elliptical
  • Airflow – cfm (liters/sec):    –               400 (190)
  • Motor Size – HP (kW):         –
    • Fan:  0.5 (0.4)
    • Drive: 1 (0.75)          0.3 (0.2)
  • Electrical Specs:
    • (X) 200-240V/50/60/1-3:            15               10
  • Shipping Dimensions Approx.
    • Width – in (mm): 34.5 (876)
    • Depth – in (mm): 47.0 (1194)
    • Height – in (mm): 83.0 (2108)
    • Net Weight – lb (kg): 770 (349)
    • Domestic Shipping Weight – lb (kg): 787 (357)
  • Agency Approvals: cULus
Total # of Speeds6
Cylinder Speed – RPM (G-Force)*
Gentle*:34 (0.4)
Wash*:48 (0.8)
Distribution*:86 (2.5)
Very Low*:282 (27)
Low*:485 (80)
Medium*:542 (100)
High*:606 (125)
Very High*:664 (150)
Ultra High*:776 (200)

Control Options

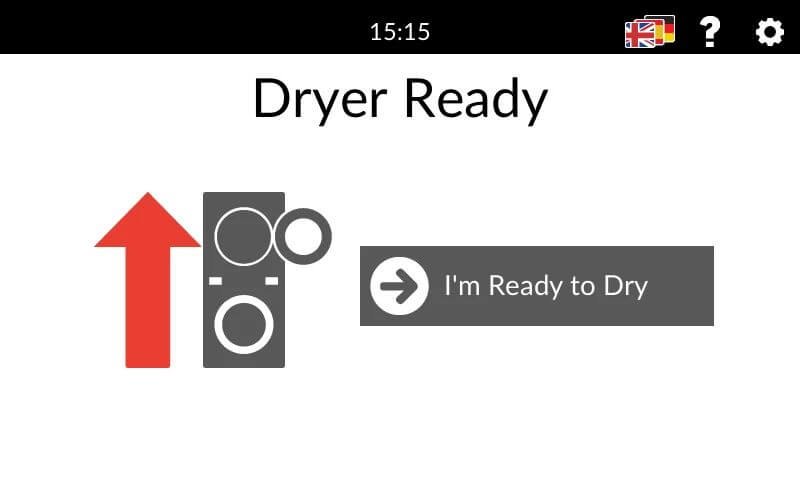

Dryer Ready

OPL Touch

The UniMac OPL Touch control has clear, easy to use, easy to understand directions and simple cycle programming

User-friendly screen with operating instructions built in as part of the control
Easy-to-understand
30+ languages available
On-screen timer
