Industrial Tumble Dryers
UniMac® tumble dryers are in a league of their own in terms of performance and efficiency. These durable commercial laundry machines achieve the perfect balance between drying temperature, airflow pattern and usable cylinder space for optimal drying results while significantly reducing utility and labor costs. To further reduce operating expenses, these industrial laundry machines feature innovations like the revolutionary OPTidry™ Over-dry Prevention Technology. Available in a variety of sizes, UniMac commercial tumble dryers meet the needs of commercial and on-premises laundries of all types and sizes.

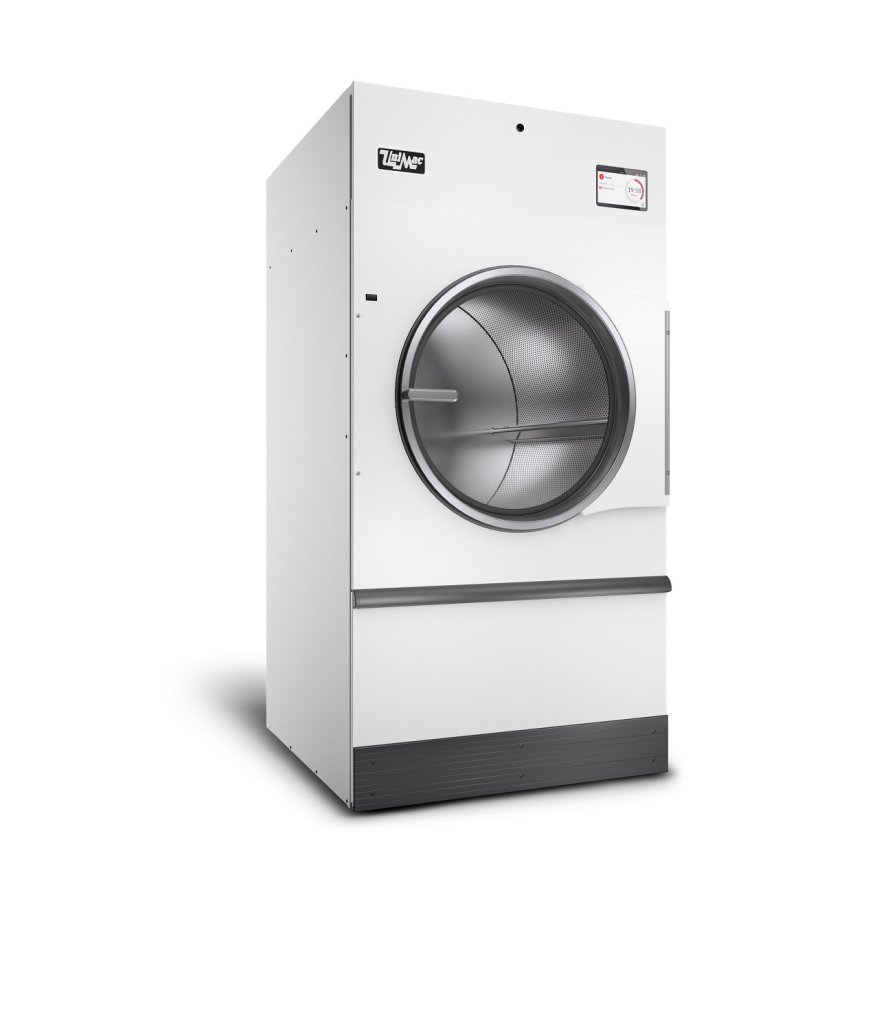

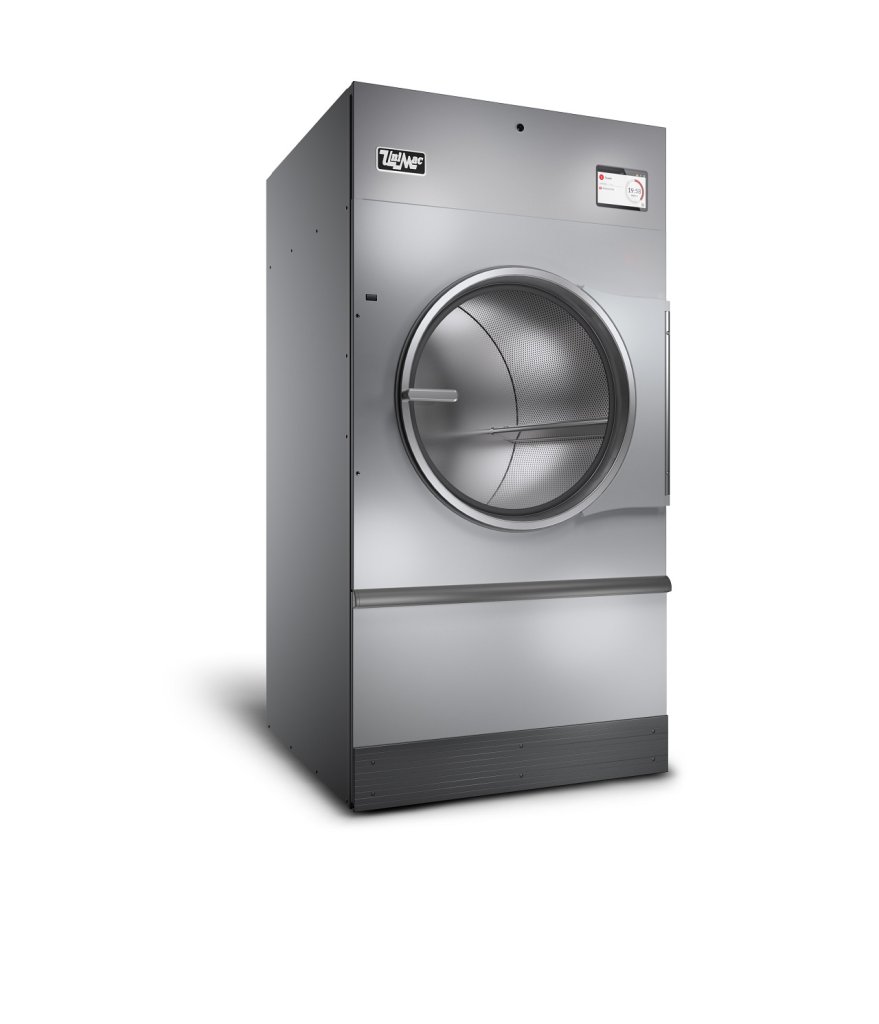

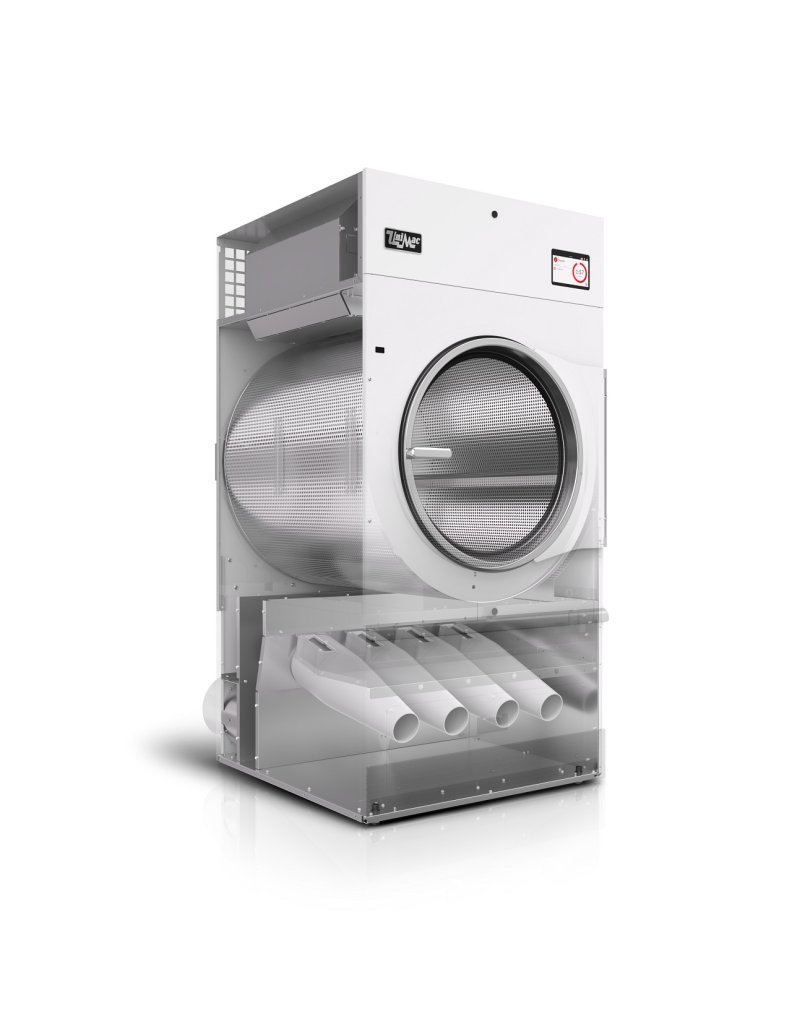

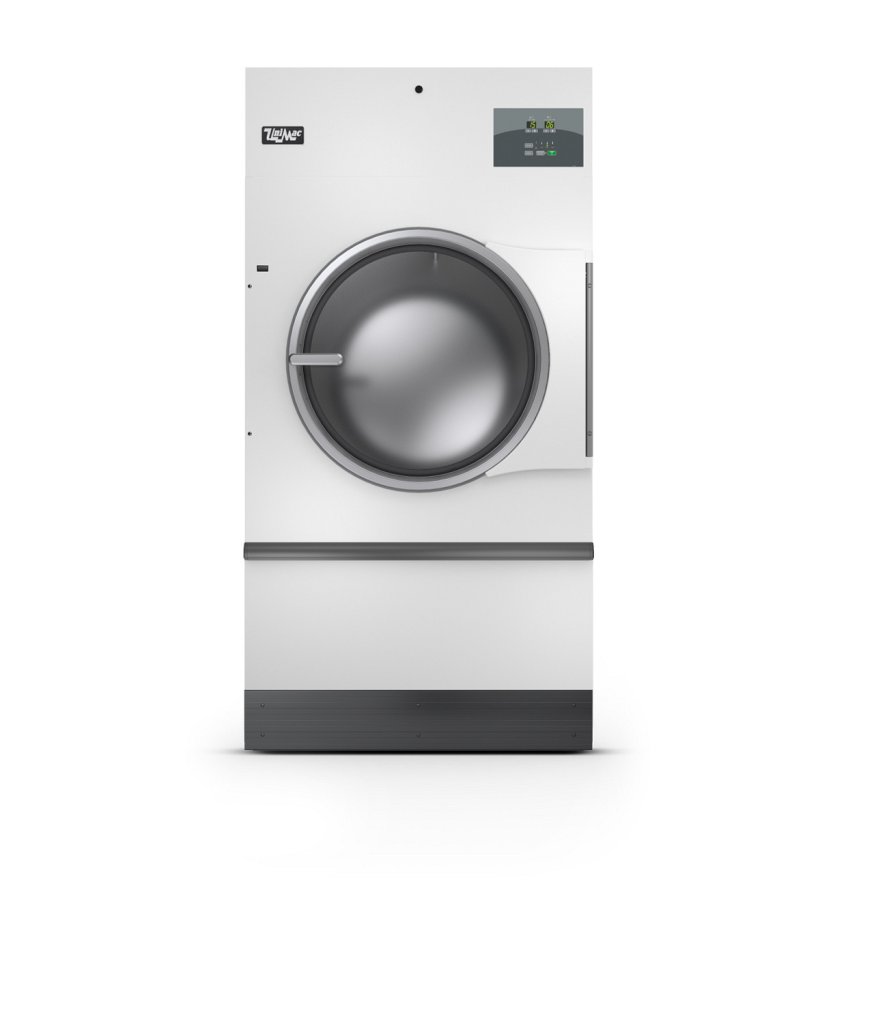

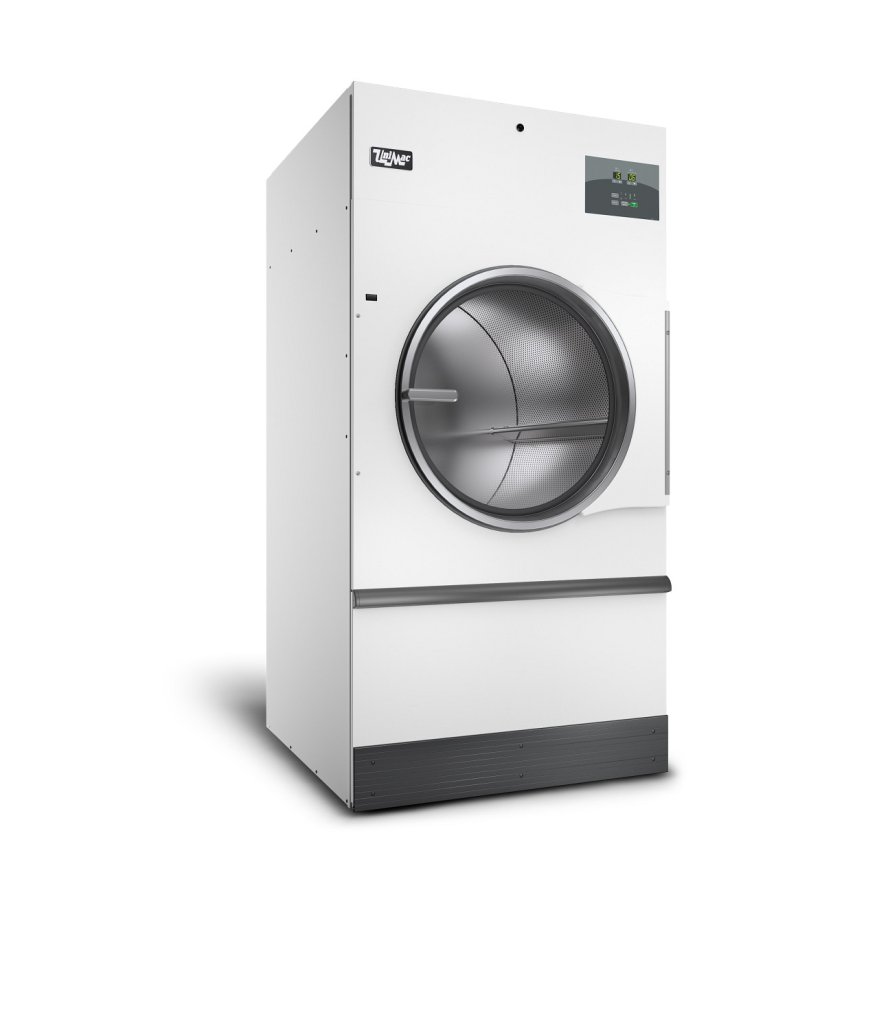

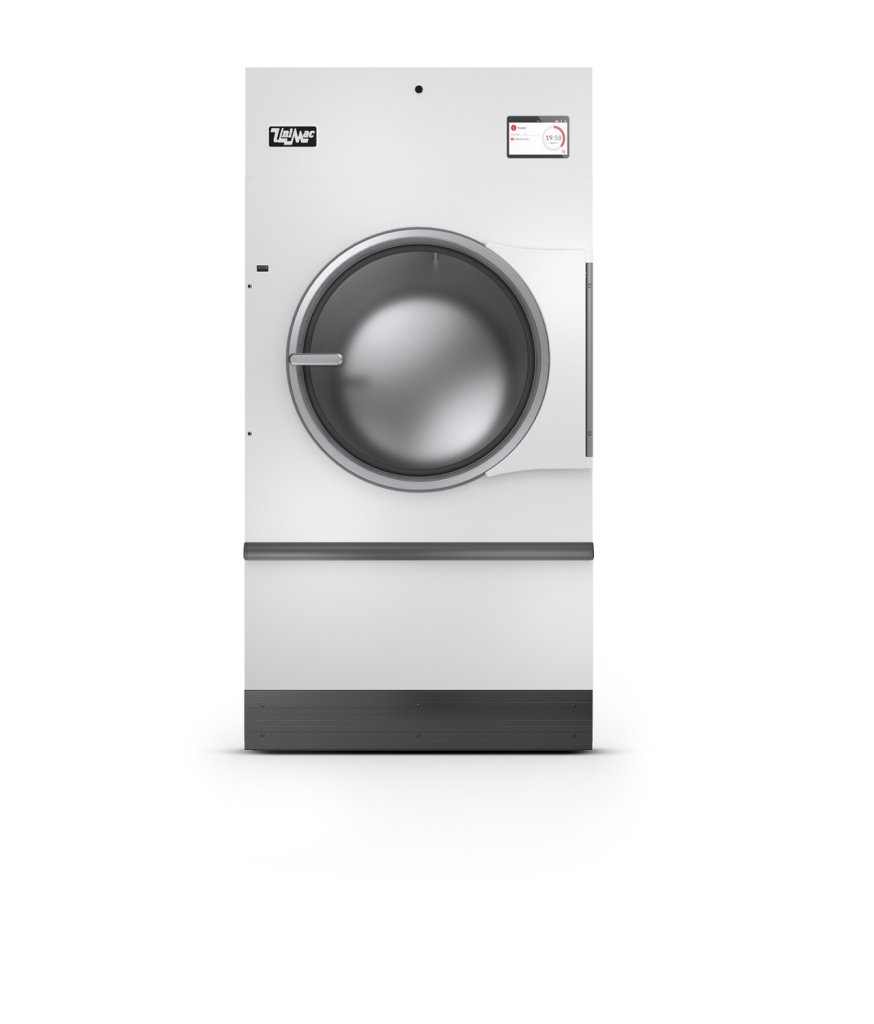

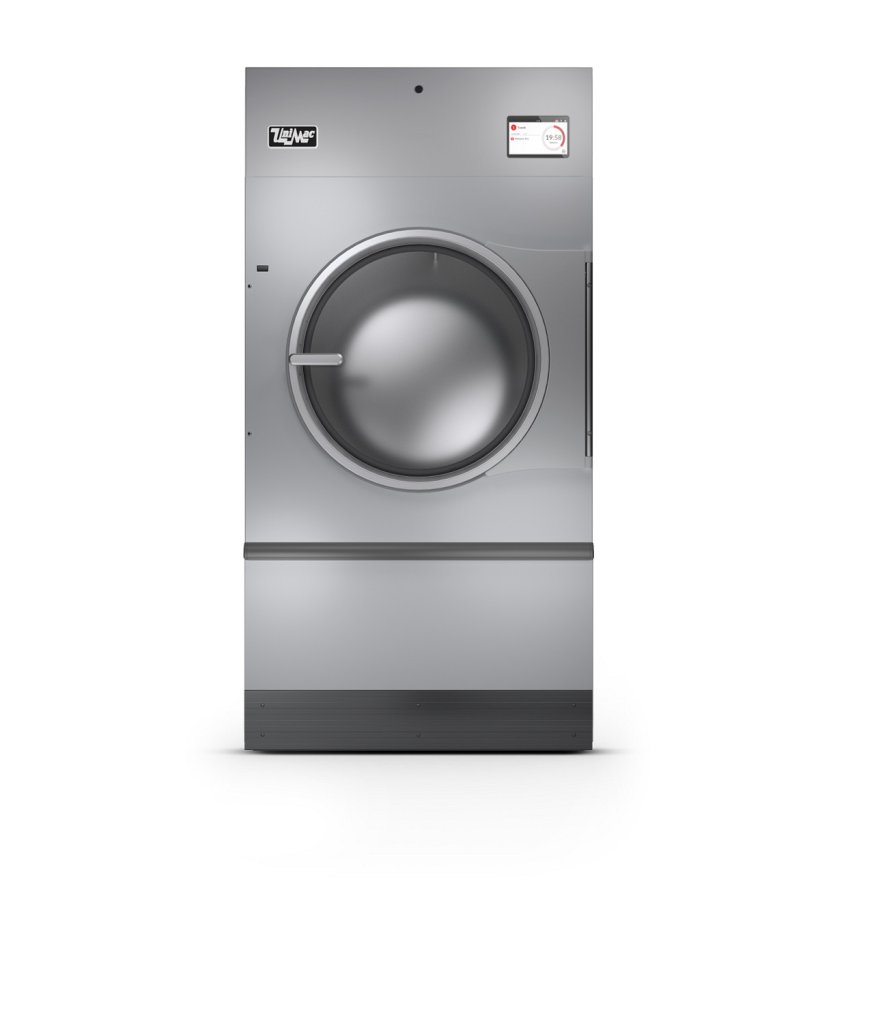

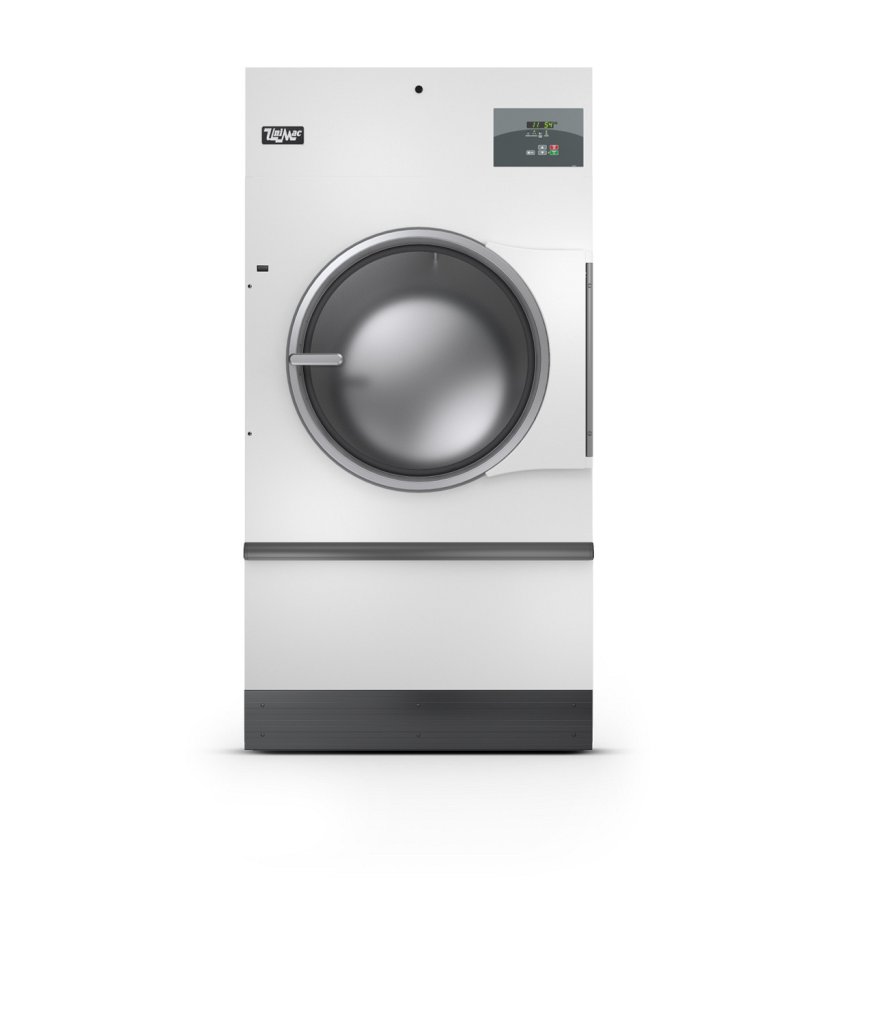

Model number: UT075NVN
Control: UniLinc Touch
Resources:
Available Options
Specifications
- Control Options: UniLinc Touch, M-Series, Dual Digital Timers
- Capacity – lb (kg): 75 (34)
- Width – in (mm): 38.5 (980)
- Depth – in (mm): 53.0 (1350)
- Height – in (mm): 77.3 (1960)
- Cylinder Diameter – in (mm): 37.0 (940)
- Cylinder Depth – in (mm): 36.0 (914)
- Cylinder Volume – cu. ft. (liters): 22.4 (634)
- Reversing Cylinder: Option
- Door Opening Size – in (mm): 26.9 (683)
- Heat Input Power:
- Gas: 165,000 Btu/hr
- Electric: 36 kW
- Gas Inlet Connection – in (mm)*: 1/2
- Air Outlet – in (mm)*: 3/4
- Air Outlet – in (mm)*: 8 (200)
- Motor Size – HP (kW)*
- Fan: 0.5
- Cylinder: 0.5
- Airflow – cfm (liters/sec)*: 800 (380)
- Electrical Specs* Gas & Steam Electric
- (B) 100-120V/50/60/1*: 12 –
- (X) 200-240V/50/60/1-3**: 7 –
- (N) 440-480V/50-60/3**: 3 –
- (G) 230-240V/50/60/3**: – 90
- (L) 460-480V/50-60/3**: 45
- Shipping Dimensions Approx.**:
- Width – in (mm)**: 41.5 (1054)
- Depth – in (mm)**: 56.0 (1420)
- Height – in (mm)**:
- Gas: 81.0 (2060)
- Steam: 83.5 (2120)
- Electric: 81.0 (2060)
- Net Weight – lb (kg)**:
- Gas: 715 (324)
- Steam: 740 (336)
- Electric: 730 (331)
- Domestic Shipping Weight – lb (kg)**:
- Gas: 760 (345)
- Steam: 800 (363)
- Electric: 780 (354)
- Agency Approvals**: CSA
- *Field conversions available for LP gas.
- **X voltage can be connected to 1 or 3 phase power and operates on 1 phase only
Control Options
UniLinc Touch
The biggest threat to quality is staff selecting the incorrect wash cycle. UniLinc Touch virtually eliminates that threat with the most intuitive control on the market.
- 34 languages ensure all staff cannot just operate, but operate it correctly
- Real words – no codes – no ambiguity
- Training time significantly shortened (a giant bonus with staff turnover generally being high)
- Continuity – same control on washer-extractors and tumble dryers
- Ultimate flexibility means your operation is positioned for success well into the future.
- Lower utility and labor costs
